INSPECTION DOCUMENT
| |
SPEC |
K8Z23-□
#1 |
K8Z23-□
#2 |
| INPUT
VOLTAGE (V) |
24 |
 |
| MOTOR
VOLTAGE (V) |
3.8 |
|
| CURRENT
(A/PHASE) |
0.95 |
|
| RESISTANCE
(OHMS/PHASE) |
4.0±10% |
4.081 |
4.088 |
| INDUCTANCE
(mH/PHASE) |
3.7REF |
3.542 |
3.502 |
| MODE
OF EXCITATON (PHASE) |
SLA7024M,
DVAL |
| HOLDING
TORQUE 2ΦON (g-cm) |
2000MIN |
2300 |
2400 |
| DETENT
TORQUE (g-cm) |
120REF |
115 |
125 |
| STEP
ACCURACY (%) |
±5
MAX |
OK |
|
| SHAFT
ROTATION |
CW |
OK |
|
| SHAFT
LENGTH (mm) |
20±0.5 |
OK |
|
| SHAFT
DIAMETER (mm) |
Φ5-0.012 |
OK |
|
| FLANGE
SPIGOT DIAMETER (mm) |
Φ22-0.05 |
OK |
|
| LEAD
WIRE TYPE |
UL
1007, AWG#24 |
OK |
|
| LEAD
WIRE LENGTH (mm) |
300MIN |
OK |
|
| INSULATION
RESISTANCE (㏁, MIN) |
500VAC,
1MIN |
OK |
|
| GEAR
HEIGHT (mm) |
100 |
OK |
|

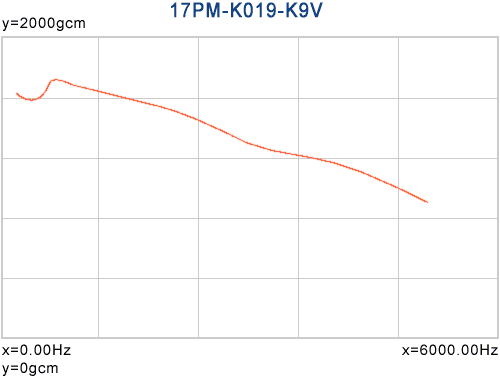

| Pull in |
200 |
400 |
600 |
800 |
1000 |
1500 |
2000 |
3000 |
4000 |
5000 |
| Pull out |
1781 |
1743 |
1861 |
1856 |
1824 |
1760 |
1686 |
1416 |
1290 |
1027 |
|
|
|
|
|
