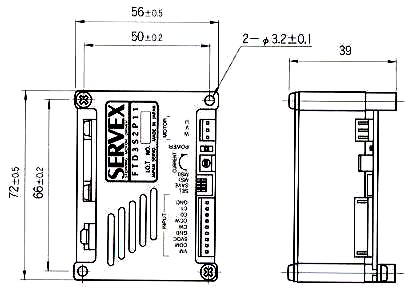

Driver FTD series for 3-phase
stepping motors
 |
FTD3S2P11-01
Palm-mini
size DC24V
micro-step drive |
|
Features
- Noiseless drive achieved with micro-step
drive.
- Step angles of 1/8, 1/4, 1/2, 1/1 available.
- High torque and quick response achieved
with constant current driver.
- Choice of input command between pulse
train signal for each rotating direction
and direction signal with pulse signal.
- Motor temperature rise reduced during
motor halt by built in function to cut
down current to 70%.
- Input terminals are equipped with a
hold-off function that can cut power off
to the motor, while the rotor can be left
free.
|
|
|
|
APPLICABLE
MOTOR MODELS
(micro-step) |
| KT35FM1-552 |
| KT42EM4-551 |
| KT42HM4-551,552 |
| KT42JM4-551,552 |
| KT56JM4-552,553,554 |
| KT56KM4-552,553 |
| KT56LM4-552,553 |
|
|

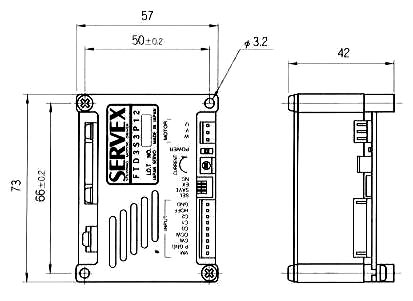

FTD3S3P12-01
Palm-mini
size DC24V |
|
Features
- Ultra-compact driver measuring 57X73X42mm.
- High torque and quick response achieved
with constant current driver.
- Choice of input command between pulse
train signal for each rotating direction
and direction signal with pulse signal.
- 8 levels of current setting via 3-bit
external signal (0.55 to 3A/2phase).
- Motor temperature rise reduced during
motor halt by built in function to cut
down current to 45 to 60%.
- Input terminals are equipped with a
hold-off function that can cut power off
to the motor, while the rotor can be left
free.
|
|
|
|
APPLICABLE
MOTOR MODELS
(micro-step) |
| KT35FM1-552 |
| KT42EM4-551 |
| KT42HM4-551,552 |
| KT42JM4-551,552 |
| KT56JM4-551,552,553,554 |
| KT56KM4-551,552,553 |
| KT56LM4-551,552,553 |
| KT60KM06-552,752 |
| KT60LM06-552,752 |
| KT86SM1-551 |
|
|
|
|
|
