JAPAN SERVO |
|
Driver FSD series for 2-phase
stepping motors
 |
Features

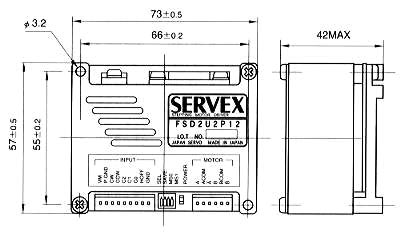

- Ultra-compact driver measuring 57X73X42mm.
- Bipolar and unipolar types.
- Step angle of 1/1 (full-step), 1/2 (micro-step),
1/4 (micro-step) are available.
- 8 levels of current setting via 3-bit
external signal.(FSD2U2P12 : 0.332 to
A/phase, FSD2B2P12 : 0.4 to 12A/phase)
- Choice of input command between pulse
train signal for each rotating direction
and direction signal with pulse signal.
|
|
|
FSD 2U 2P12-01 (unipolar
type)
- Palm-mini size DC24V
APPLICABLE
MOTOR MODELS
(micro-step) |
| KH42HM2-801 |
| KH42JM2-801 |
| KH42KM2-801 |
| KH56JM2-802 |
| KH56KM2-802 |
| KH56QM2-802 |
|
FSD 2B 2P12-01(bipolar
type)
- Palm-mini size DC24V
APPLICABLE
MOTOR MODELS
(micro-step) |
| KH42HM2-851 |
| KH42JM2-851 |
| KH42KM2-851 |
| KH56JM2-851 |
| KH56KM2-851 |
| KH56QM2-851 |
|
|
|
|
|
