| DC BRUSHLESS
FAN GENERAL DATA |
| FRAME: |
INJECTION MOULDED NON-FLAMMABLE BLACK THERMOPLASTIC
UL 94V-0 RATING. |
| MOTOR: |
DC BRUSHLESS MOTOR. |
| IMPELLER:
|
INJECTION MOLDED, NON-FLAMMABLE BLACK THERMOPLASTIC
UL 94V-0 RATING. |
| BEARING: |
PRECISION, LIFE LUBRICATED BALL BEARING SYSTEM.
PRECISION, OIL IMPREGNATED SINTERED SLEEVE BEARING
SYSTEM. |
| INSULATION
RESISTANCE: |
10 MEGAOHMS MINIMUM AT 500VDC. |
| DIELECTRIC
STRENGTH: |
1 MINIMUM AT 2,000 VAC/50-60Hz. (BETWEEN FRAME
AND TERMINAL). |
| OPERATING
TEMPERATURE: |
-10￠C TO +70￠C FOR THE SLEEVE BEARING.
-20￠C TO +80￠C FOR THE BALL BEARING. |
| OPERATING
VOLTAGE: |
RATED VOLTAGE +15% |
| AMBIENT HUMIDITY:
|
BALL BEARING RH20%-85%.
SLEEVE BEARING RH20%-80%. |
| LIFE EXPECTANCY:
|
BALL BEARING SLEEVE BEARING TEMP
60,000 HOURS 40,000 HOURS AT 25￠C
40,000 HOURS 25,000 HOURS AT 40￠C
25,000 HOURS 15,000 HOURS AT 55￠C
15,000 HOURS 10,000 HOURS AT 70￠C |
| NOISE LEVEL RANGE IS FROM 24 TO 46dBA
DEPENDING ON THE SPEED AND MODEL SELECTED. |
| WARRANTY:
|
COMMONWEALTH FANS ARE WARRANTED FREE OF CHARGE
ON DEFECTIVE MATERIALS AND WORKMANSHIP FOR ONE YEAR
FROM THE DATE OF DELIVERY. |
| THE THIRD WIRE SIGNAL |

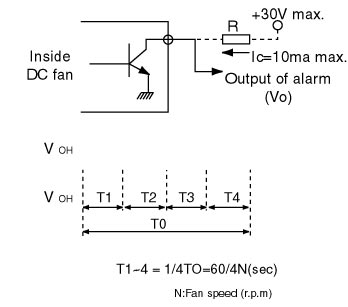

| A. FG Type for speed sensor signal |
| 1. |
Output circuit-open collector |
| 2. |
2. Specification
Vce=+30V max.
Ic=10mA max.
(Vce(sat)=0.4Vmax.) |
| 3. |
Output waveform (in pulled up state by connective
a loadresistor) |
 |

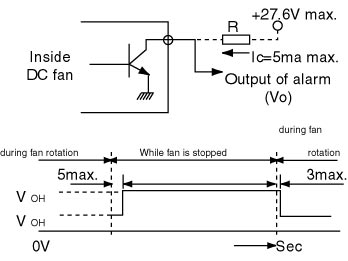

| B. RD type for rotor locked alarm
signal |
| 1. |
Output circuit-open collector |
| 2. |
Specification
Vce=+27.6V max.
Ic=5mA max.
(Vce(sat)=0.4Vmax.) |
| 3. |
Output waveform (in pulled up state by connective
a loadresistor) |
| NOTE: |
Output comes quit VoL-level within 0.5 sec after
operating Power supplied to fan. |
 |
제품종류
FP-108EX/DC, FP-108EX |
FP-108CX/DC |
FP-108-7/DC |
FP-108/DC |
FP-108M/DC |
FP-108B/DC |
FP-108D/DC |
FP-108DT/DC
|
FP-108F/DC(ULTRA)
|
FP-108F/DC |
FP-108FI/DC |
FP-108FT/DC
|
FP-108J/DC, FP-108JT/DC
|
FP-108G/DC |
FP-108T/DC |
FP-108HX/DC |
FP-108HT/DC, FP-108HI/DC |
FP-108S/DC |
FP-108ST/DC |
FP-108I/DC |
FP-108IT/DC |
|
|
|
|
|
