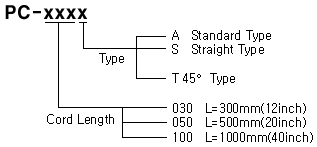

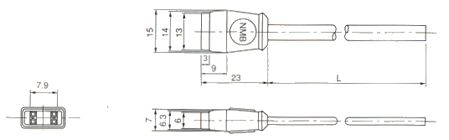

PC-xxxA
Material
:
Lead Wire : PVC AWG18(0.75mm2)
PLUG : PVC |
電氣仕樣
:
定格電壓 250V
定格電流 2.5A(60°C) |
UL E88429, CSA LR44061

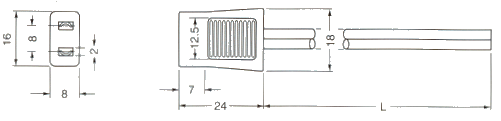

PC-xxxS(07100) Straight Type
 |

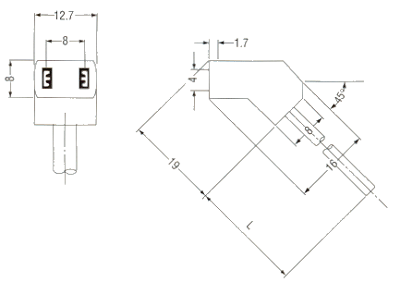

PC-xxxT(07145) 45°Type
|
Material
:
Lead Wire : Vinyl cords, SPT-1, 18AWG, 105°C
PLUG : PVC105°C
Terminal : JIS-C 5210 |
電氣仕樣
:
定格電壓 125V
定格電流 1A |
|
|
|
|
