| 6820PL (172¥Õ
* 50L) |
|

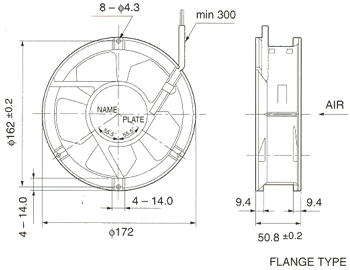

Outline
|
 |
 |
|

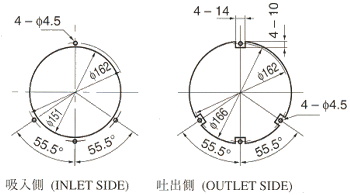

Panel Out-cuts
|
 |
|
|

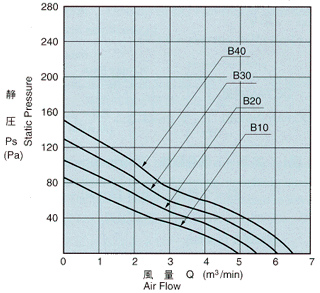

Characteristic Curves
|
 |
|
|
Material
|
| Casing |
: |
Aluminum Die Casting |
| Impeller |
: |
Plastic (Black) 94V_0 |
| Bearing |
: |
Ball Bearing |
| Lead Wire |
: |
UL1007 AWG22 +:Red, -:Black |
|
|
»ç¾çÇ¥
úþãÒÙ£
Model |
ïÒÌ«ï³äâ
Rating
Voltage |
ÞÅéÄï³äâ
ÛôêÌ
Operating
Voltage |
õÌÓÞ
ù¦Õá
Max
Air Flow |
õÌÓÞð¡äâ
MaxStatic
Pressure |
üÞï®áÜÓø
Speed |
ïÒÌ«
ï³×¸
Current |
ïÒÌ«ìýÕô
Input
Power |
áÓëå
Noise |
òõÕá
Mass |
| V |
V |
m3/min*2 |
Pa*2 |
min-1{rpm}*2 |
A*1 |
w*1 |
dB*2 |
g |
| 6820PL-04W-B10-D00 |
12 |
6 ~ 14 |
5.1 |
94.1 |
2550 |
1.10 |
13.20 |
50 |
830 |
| 6820PL-04W-B20-D00 |
5.65 |
117.7 |
2850 |
1.50 |
18.00 |
53 |
| 6820PL-04W-B30-D00 |
6.4 |
141.2 |
3150 |
1.90 |
22.80 |
55 |
| 6820PL-04W-B40-D00 |
6.8 |
155.9 |
3350 |
2.20 |
26.40 |
58 |
| 6820PL-05W-B10-D00 |
24 |
12 ~ 28 |
5.1 |
94.1 |
2550 |
0.50 |
12.00 |
50 |
| 6820PL-05W-B20-D00 |
5.65 |
117.7 |
2850 |
0.63 |
15.12 |
53 |
| 6820PL-05W-B30-D00 |
6.4 |
141.2 |
3150 |
0.80 |
19.20 |
55 |
| 6820PL-05W-B40-D00 |
6.8 |
155.9 |
3350 |
0.95 |
22.80 |
58 |
| 6820PL-07W-B10-D00 |
48 |
28 ~ 56 |
5.1 |
94.1 |
2550 |
0.26 |
12.48 |
50 |
| 6820PL-07W-B20-D00 |
5.65 |
117.7 |
2850 |
0.33 |
15.84 |
53 |
| 6820PL-07W-B30-D00 |
6.4 |
141.2 |
3150 |
0.40 |
19.20 |
55 |
| 6820PL-07W-B40-D00 |
6.8 |
155.9 |
3350 |
0.45 |
21.60 |
58 |
*1 : Average Values in Free Air, *2 : Maximum
Values in Free Air
-D00 : FLANGE TYPE
MADE IN U.S.A IMC MAGNETICS CORPORATION |
|
|
|
|
