* NMB / DC FAN MOTOR 특징사양표

4715KL (119□ * 38L)

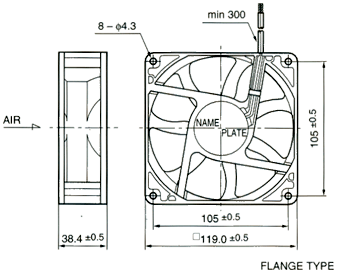

  • Outline

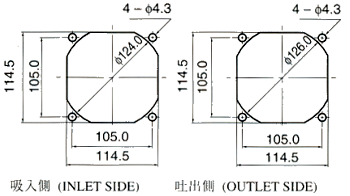

  • Panel Out-cuts

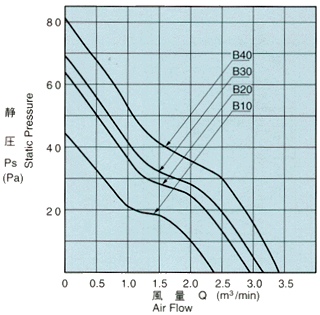

  • Characteristic Curves
  • Material
  • Casing : Plastic (Black) 94V_0
    Impeller : Plastic (Black) 94V_0
    Bearing : Ball Bearing
    Lead Wire : UL1061 AWG26 +:Red, -:Black


    사양표
    型式名
    Model
    定格電壓
    Rating
    Voltage
    使用電壓
    範圍
    Operating
    Voltage
    最大
    風量
    Max
    Air Flow
    最大靜壓
    MaxStatic
    Pressure
    回轉速度
    Speed
    定格
    電琉
    Current
    定格入力
    Input
    Power
    騷音
    Noise
    質量
    Mass
    V V m3/min*2 Pa*2 min-1{rpm}*2 A*1 w*1 dB*2 g
    4715KL-04W-B10-P00 12 6 ~ 13.8 2.37 44.1 2300 0.35 4.20 37.0 260
    4715KL-04W-B20-P00 2.75 55.9 2650 0.52 6.24 41.0
    4715KL-04W-B30-P00 3.07 68.2 2950 0.72 8.64 42.5
    4715KL-04W-B40-P00 3.34 81.4 3200 0.90 10.80 46.5
    4715KL-05W-B10-P00 24 10 ~ 27.6 2.37 44.1 2300 0.20 4.80 37.0
    4715KL-05W-B20-P00 2.75 55.9 2650 0.28 6.72 41.0
    4715KL-05W-B30-P00 3.07 68.2 2950 0.40

    9.60

    42.5
    4715KL-05W-B40-P00 3.34 81.4 3200 0.46 11.04 46.5
    *1 : Average Values in Free Air, *2 : Maximum Values in Free Air
    - P00 : FLANGE TYPE
    Rotation : CW Viewed From Name Plate Side
    Air Flow Direction : Air Out Over the Struts
