| 4712KL (119¡à * 32L)/Long Life Fan |
|

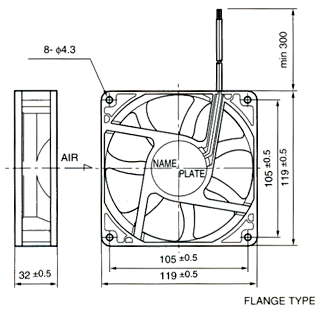

Outline
|
 |
 |
|

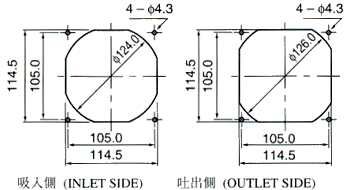

Panel Out-cuts
|
 |
|
|

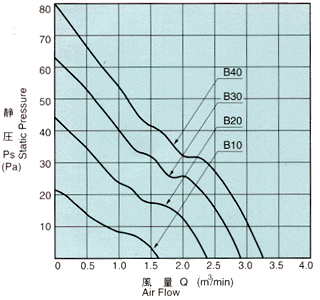

Characteristic Curves
|
 |
|
|
Material
|
| Casing |
: |
Plastic (Black) 94V_0 |
| Impeller |
: |
Plastic (Black) 94V_0 |
| Bearing |
: |
Ball Bearing |
| Lead Wire |
: |
UL1061 AWG26 +:Red, -:Black |
|
|
»ç¾çÇ¥
úþãÒÙ£
Model |
ïÒÌ«ï³äâ
Rating
Voltage |
ÞÅéÄï³äâÛôêÌ
Operating
Voltage |
õÌÓÞ
ù¦Õá
Max
Air Flow |
õÌÓÞð¡äâ
MaxStatic
Pressure |
üÞï®áÜÓø
Speed |
ïÒÌ«
ï³×¸
Current |
ïÒÌ«ìýÕô
Input
Power |
áÓëå
Noise |
òõÕá
Mass |
| V |
V |
m3/min*1 |
Pa*1 |
min-1{rpm}*1 |
A*2 |
w*2 |
dB*1 |
g |
| 4712KL-04W-B10-P00 |
12 |
6 ~ 13.8 |
1.59 |
22 |
1600 |
0.22 |
2.64 |
29 |
240 |
| 4712KL-04W-B20-P00 |
2.33 |
42 |
2300 |
0.46 |
5.52 |
39 |
| 4712KL-04W-B30-P00 |
2.83 |
60 |
2800 |
0.70 |
8.40 |
44 |
| 4712KL-04W-B40-P00 |
3.17 |
82 |
3100 |
1.10 |
13.20 |
47 |
| 4712KL-05W-B10-P00 |
24 |
12 ~ 27.6 |
1.59 |
22 |
1600 |
0.12 |
2.88 |
29 |
| 4712KL-05W-B20-P00 |
2.33 |
42 |
2300 |
0.26 |
6.24 |
39 |
| 4712KL-05W-B30-P00 |
2.83 |
60 |
2800 |
0.40 |
9.60 |
44 |
| 4712KL-05W-B40-P00 |
3.17 |
82 |
3100 |
0.48 |
11.52 |
47 |
| 4712KL-07W-B10-P00 |
48 |
28 ~ 55.2 |
1.59 |
22 |
1600 |
0.10 |
4.80 |
29 |
| 4712KL-07W-B20-P00 |
2.33 |
42 |
2300 |
0.15 |
7.20 |
39 |
| 4712KL-07W-B30-P00 |
2.83 |
60 |
2800 |
0.23 |
11.04 |
44 |
| 4712KL-07W-B40-P00 |
3.17 |
82 |
3100 |
0.30 |
14.40 |
47 |
*1 : Average Values in Free Air, *2 : Maximum
Values in Free Air
P : FLANGE TYPE
Rotation : CW Viewed From Name
Plate Side
Air Flow Direction : Air Out Over the Struts
|
|
|
|
|
