| 4710NL (119¡à * 25L) |
|

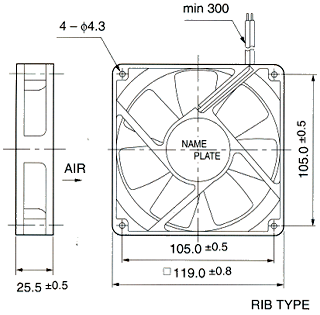

Outline
|
 |
 |
|

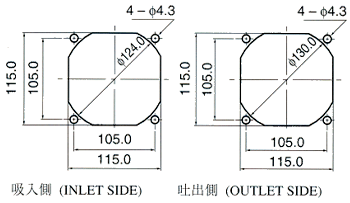

Panel Out-cuts
|
 |
|
|

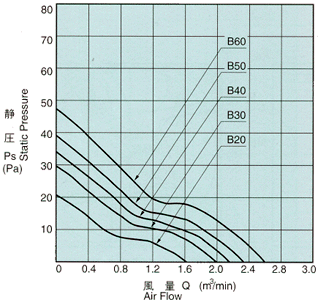

Characteristic Curves
|
 |
|
|
Material
|
| Casing |
: |
Plastic (Black) 94V_0 |
| Impeller |
: |
Plastic (Black) 94V_0 |
| Bearing |
: |
Ball Bearing |
| Lead Wire |
: |
UL1061 AWG26 +:Red, -:Black |
|
|
»ç¾çÇ¥
úþãÒÙ£
Model |
ïÒÌ«ï³äâ
Rating
Voltage |
ÞÅéÄï³äâÛôêÌ
Operating
Voltage |
õÌÓÞ
ù¦Õá
Max
Air Flow |
õÌÓÞð¡äâ
MaxStatic
Pressure |
üÞï®áÜÓø
Speed |
ïÒÌ«
ï³×¸
Current |
ïÒÌ«ìýÕô
Input
Power |
áÓëå
Noise |
òõÕá
Mass |
| V |
V |
m3/min*2 |
Pa*2 |
min-1{rpm}*2 |
A*1 |
w*1 |
dB*2 |
g |
4710NL-04W-B10-
L00/P00 |
12 |
6 ~ 13.8 |
1.66 |
20.8 |
1550 |
0.16 |
1.92 |
27.0 |
220 |
4710NL-04W-B20-
L00/P00 |
2.04 |
28.9 |
1750 |
0.20 |
2.40 |
30.5 |
4710NL-04W-B30-
L00/P00 |
2.25 |
34.2 |
2050 |
0.32 |
3.84 |
35.0 |
4710NL-04W-B40-
L00/P00 |
2.36 |
38.2 |
2300 |
0.44 |
5.28 |
38.5 |
4710NL-04W-B50-
L00/P00 |
2.60 |
46.7 |
2550 |
0.74 |
8.88 |
41.5 |
4710NL-05W-B10-
L00/P00 |
24 |
10 ~ 27.6 |
1.66 |
20.8 |
1550 |
0.08 |
1.92 |
27.0 |
4710NL-05W-B20-
L00/P00 |
2.04 |
28.9 |
1750 |
0.12 |
2.88 |
30.5 |
4710NL-05W-B30-
L00/P00 |
2.25 |
34.2 |
2050 |
0.16 |
3.84 |
35.0 |
4710NL-05W-B40-
L00/P00 |
2.36 |
38.2 |
2300 |
0.22 |
5.28 |
38.5 |
4710NL-05W-B50-
L00/P00 |
2.60 |
46.7 |
2550 |
0.31 |
7.44 |
41.5 |
*1 : Average Values in Free Air, *2 : Maximum
Values in Free Air
- L00(T00) : RIB TYPE
- P00(S00) : FLANGE TYPE
Rotation : CW Viewed From Name
Plate Side
Air Flow Direction : Air Out Over the Struts
|
|
|
|
|
