| 3615KL (92¡à * 38L)/Long Life Fan |
|

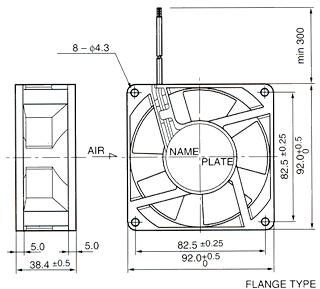

Outline
|
 |
 |
|

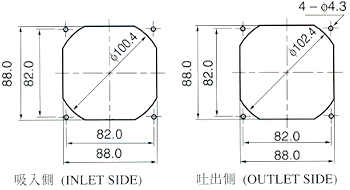

Panel Out-cuts
|
 |
|
|

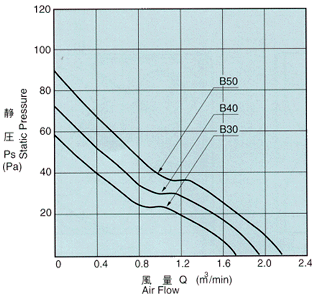

Characteristic Curves
|
 |
|
|
Material
|
| Casing |
: |
Plastic (Black) 94V_0 |
| Impeller |
: |
Plastic (Black) 94V_0 |
| Bearing |
: |
Ball Bearing |
| Lead Wire |
: |
UL1061 AWG26 +:Red, -:Black |
|
|
»ç¾çÇ¥
úþãÒÙ£
Model |
ïÒÌ«ï³äâ
Rating
Voltage |
ÞÅéÄï³äâÛôêÌ
Operating
Voltage |
õÌÓÞ
ù¦Õá
Max
Air Flow |
õÌÓÞð¡äâ
MaxStatic
Pressure |
üÞï®áÜÓø
Speed |
ïÒÌ«
ï³×¸
Current |
ïÒÌ«ìýÕô
Input
Power |
áÓëå
Noise |
òõÕá
Mass |
| V |
V |
m3/min*1 |
Pa*1 |
min-1
*3 |
A*2 |
w*2 |
dB*1 |
g |
| 3615KL-04W-B30-P00 |
12 |
7 ~ 13.2 |
1.71 |
57.9 |
3200 |
0.36 |
4.32 |
40.5 |
210 |
| 3615KL-04W-B40-P00 |
7 ~ 13.2 |
1.94 |
72.0 |
3600 |
0.48 |
5.76 |
44.0 |
| 3615KL-04W-B50-P00 |
7 ~ 12.6 |
2.16 |
89.2 |
4000 |
0.60 |
7.20 |
46.5 |
*1 : Average Values in Free Air, *2 : Maximum
Values in Free Air
- P : FLANGE TYPE
Rotation : CW Viewed From Name
Plate Side
Air Flow Direction : Air Out Over the Struts
|
|
|
|
|
