| 3610NL (92¡à * 25L)/Long Life Fan |
|

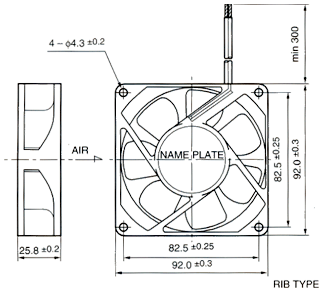

Outline
|
 |
 |
|

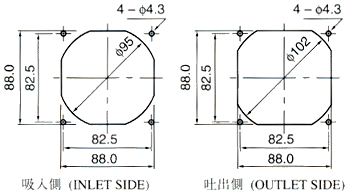

Panel Out-cuts
|
 |
|
|

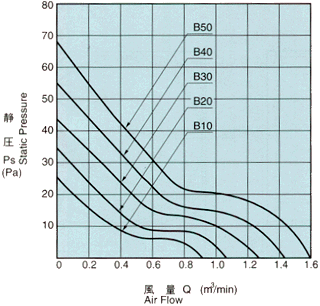

Characteristic Curves
|
 |
|
|
Material
|
| Casing |
: |
Plastic (Black) 94V_0 |
| Impeller |
: |
Plastic (Black) 94V_0 |
| Bearing |
: |
Ball Bearing |
| Lead Wire |
: |
UL1061 AWG26 +:Red, -:Black |
|
|
»ç¾çÇ¥
úþãÒÙ£
Model |
ïÒÌ«ï³äâ
Rating
Voltage |
ÞÅéÄï³äâÛôêÌ
Operating
Voltage |
õÌÓÞ
ù¦Õá
Max
Air Flow |
õÌÓÞð¡äâ
MaxStatic
Pressure |
üÞï®áÜÓø
Speed |
ïÒÌ«
ï³×¸
Current |
ïÒÌ«ìýÕô
Input
Power |
áÓëå
Noise |
òõÕá
Mass |
| V |
V |
m3/min*3 |
Pa*3 |
rpm*3 |
A*2 |
w*2 |
dB*1 |
g |
| 3610NL-04W-B10-L00/P00 |
12 |
6 ~ 13.8 |
0.90 |
22.5 |
2000 |
0.13 |
1.56 |
24.0 |
160 |
| 3610NL-04W-B20-L00/P00 |
1.00 |
29.4 |
2300 |
0.17 |
2.04 |
27.0 |
| 3610NL-04W-B30-L00/P00 |
1.20 |
39.2 |
2700 |
0.23 |
2.76 |
32.0 |
| 3610NL-04W-B40-L00/P00 |
1.45 |
53.9 |
3100 |
0.35 |
4.20 |
36.0 |
| 3610NL-04W-B50-L00/P00 |
1.60 |
63.7 |
3500 |
0.45 |
5.40 |
39.0 |
| 3610NL-05W-B10-L00/P00 |
24 |
10 ~ 27.6 |
0.90 |
22.5 |
2000 |
0.07 |
1.68 |
24.0 |
| 3610NL-05W-B20-L00/P00 |
1.00 |
29.4 |
2300 |
0.09 |
2.16 |
27.0 |
| 3610NL-05W-B30-L00/P00 |
1.20 |
39.2 |
2700 |
0.13 |
3.12 |
32.0 |
| 3610NL-05W-B40-L00/P00 |
1.45 |
53.9 |
3100 |
0.17 |
4.08 |
36.0 |
| 3610NL-05W-B50-L00/P00 |
1.60 |
63.7 |
3500 |
0.23 |
5.52 |
39.0 |
*1 : Average Values in Free Air, *2 : Maximum
Values in Free Air
*3 : Minimum Values in Free Air
- L00(T00) : RIB TYPE
- P00(S00) : FLANGE TYPE |
|
|
|
|
