| 3610KL (92¡à * 25L) |
|

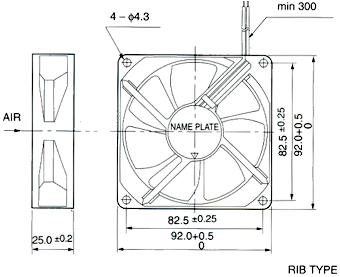

Outline
|
 |
 |
|

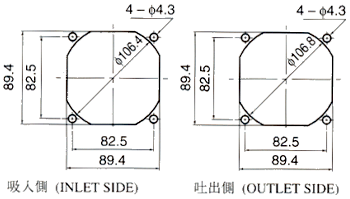

Panel Out-cuts
|
 |
|
|

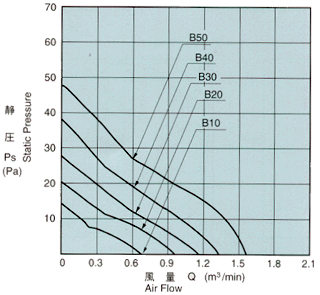

Characteristic Curves
|
 |
|
|
Material
|
| Casing |
: |
Plastic (Black) 94V_0 |
| Impeller |
: |
Plastic (Black) 94V_0 |
| Bearing |
: |
Ball Bearing |
| Lead Wire |
: |
UL1061 AWG26 +:Red, -:Black |
|
|
»ç¾çÇ¥
úþãÒÙ£
Model |
ïÒÌ«ï³äâ
Rating
Voltage |
ÞÅéÄï³äâÛôêÌ
Operating
Voltage |
õÌÓÞ
ù¦Õá
Max
Air Flow |
õÌÓÞð¡äâ
MaxStatic
Pressure |
üÞï®áÜÓø
Speed |
ïÒÌ«
ï³×¸
Current |
ïÒÌ«ìýÕô
Input
Power |
áÓëå
Noise |
òõÕá
Mass |
| V |
V |
m3/min*2 |
Pa*2 |
min-1{rpm}*2 |
A*1 |
w*1 |
dB*2 |
g |
3610KL-04W-B10-
L00/P00 |
12 |
6 ~ 13.8 |
0.75 |
14.2 |
1750 |
0.08 |
0.96 |
25.0 |
95 |
3610KL-04W-B20-
L00/P00 |
0.95 |
20.1 |
2100 |
0.12 |
1.44 |
29.5 |
3610KL-04W-B30-
L00/P00 |
1.15 |
27.0 |
2450 |
0.20 |
2.40 |
34.0 |
3610KL-04W-B40-
L00/P00 |
1.35 |
37.2 |
2850 |
0.28 |
3.36 |
37.5 |
3610KL-04W-B50-
L00/P00 |
6 ~ 13.0 |
1.55 |
48.0 |
3200 |
0.43 |
5.16 |
41.0 |
3610KL-05W-B10-
L00/P00 |
24 |
10 ~ 27.6 |
0.75 |
14.2 |
1750 |
0.06 |
1.44 |
25.0 |
3610KL-05W-B20-
L00/P00 |
0.95 |
20.1 |
2100 |
0.07 |
1.68 |
29.5 |
3610KL-05W-B30-
L00/P00 |
1.15 |
27.0 |
2450 |
0.11 |
2.64 |
34.0 |
3610KL-05W-B40-
L00/P00 |
1.35 |
37.2 |
2850 |
0.16 |
3.84 |
37.5 |
3610KL-05W-B50-
L00/P00 |
10 ~ 25.0 |
1.55 |
48.0 |
3200 |
0.20 |
4.80 |
41.0 |
*1 : Average Values in Free Air, *2 : Maximum
Values in Free Air
- L00(T00) : RIB TYPE
- P00(S00) : FLANGE TYPE
Rotation : CCW Viewed From Name
Plate Side
Air Flow Direction : Air Out Over the Struts
|
|
|
|
|
