| 3110NL (80¡à * 25L)/Long Life Fan |
|

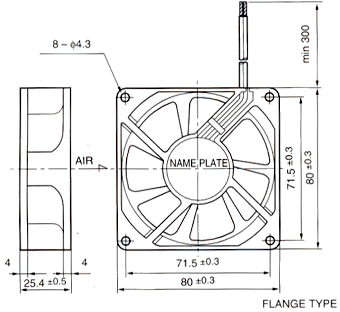

Outline
|
 |
 |
|

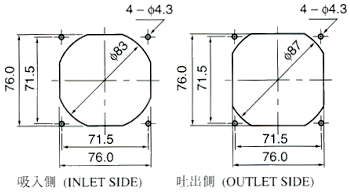

Panel Out-cuts
|
 |
|
|

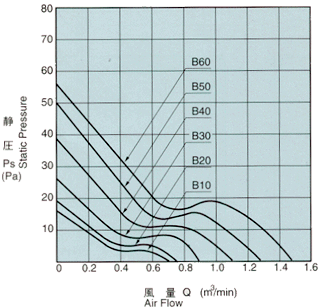

Characteristic Curves
|
 |
|
|
Material
|
| Casing |
: |
Plastic (Black) 94V_0 |
| Impeller |
: |
Plastic (Black) 94V_0 |
| Bearing |
: |
Ball Bearing |
| Lead Wire |
: |
UL1061 AWG26 +:Red, -:Black |
|
|
»ç¾çÇ¥
úþãÒÙ£
Model |
ïÒÌ«ï³äâ
Rating
Voltage |
ÞÅéÄï³äâÛôêÌ
Operating
Voltage |
õÌÓÞ
ù¦Õá
Max
Air Flow |
õÌÓÞð¡äâ
MaxStatic
Pressure |
üÞï®áÜÓø
Speed |
ïÒÌ«
ï³×¸
Current |
ïÒÌ«ìýÕô
Input
Power |
áÓëå
Noise |
òõÕá
Mass |
| V |
V |
m3/min*3 |
Pa*3 |
rpm*3 |
A*2 |
w*2 |
dB*1 |
g |
| 3110NL-04W-B10-L00/P00 |
12 |
6 ~ 13.8 |
0.65 |
15.7 |
1950 |
0.11 |
1.32 |
20 |
100 |
| 3110NL-04W-B20-L00/P00 |
0.75 |
18.1 |
2150 |
0.12 |
1.44 |
22.5 |
| 3110NL-04W-B30-L00/P00 |
0.85 |
21.6 |
2450 |
0.14 |
1.68 |
25.0 |
| 3110NL-04W-B40-L00/P00 |
1.00 |
34.3 |
2950 |
0.21 |
2.52 |
32.0 |
| 3110NL-04W-B50-L00/P00 |
1.20 |
47.0 |
3400 |
0.29 |
3.48 |
38.0 |
| 3110NL-05W-B10-L00/P00 |
24 |
10 ~ 27.6 |
0.65 |
15.7 |
1950 |
0.07 |
1.68 |
20.5 |
| 3110NL-05W-B20-L00/P00 |
0.75 |
18.1 |
2150 |
0.09 |
2.16 |
22.5 |
| 3110NL-05W-B30-L00/P00 |
0.85 |
21.6 |
2450 |
0.11 |
2.64 |
25.5 |
| 3110NL-05W-B40-L00/P00 |
1.00 |
34.3 |
2950 |
0.12 |
2.88 |
32.0 |
| 3110NL-05W-B50-L00/P00 |
1.20 |
47.0 |
3400 |
0.17 |
4.08 |
38.0 |
| 3110NL-05W-B60-L00/P00 |
1.30 |
51.0 |
3600 |
0.22 |
5.28 |
39.0 |
*1 : Average Values in Free Air, *2 : Maximum
Values in Free Air
*3 : Minimum Values in Free Air
- L00(T00) : RIB TYPE
- P00(S00) : FLANGE TYPE |
|
|
|
|
