NMB / DC FAN MOTOR |
특징┃사양표 |
| 3110KL (80□ * 25L) |
|
Outline
|
 |
 |
|
Panel Out-cuts
|
 |
|
|

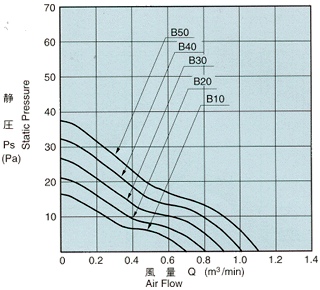

Characteristic Curves
|
 |
|
|
Material
|
| Casing |
: |
Plastic (Black) 94V_0 |
| Impeller |
: |
Plastic (Black) 94V_0 |
| Bearing |
: |
Ball Bearing |
| Lead Wire |
: |
UL1061 AWG26 +:Red, -:Black |
|
|
사양표
型式名
Model |
定格電壓
Rating
Voltage |
使用電壓範圍
Operating
Voltage |
最大
風量
Max
Air Flow |
最大靜壓
MaxStatic
Pressure |
回轉速度
Speed |
定格
電琉
Current |
定格入力
Input
Power |
騷音
Noise |
質量
Mass |
| V |
V |
m3/min*2 |
Pa*2 |
min-1{rpm}*2 |
A*1 |
w*1 |
dB*2 |
g |
3110KL-04W-B10-
L00/P00 |
12 |
6 ~ 13.8 |
0.70 |
16.7 |
2150 |
0.13 |
1.56 |
22 |
95 |
3110KL-04W-B20-
L00/P00 |
0.80 |
21.6 |
2400 |
0.14 |
1.68 |
25 |
3110KL-04W-B30-
L00/P00 |
0.90 |
26.5 |
2700 |
0.22 |
2.64 |
28 |
3110KL-04W-B40-
L00/P00 |
1.00 |
32.3 |
3000 |
0.26 |
3.12 |
31 |
3110KL-04W-B50-
L00/P00 |
1.10 |
37.2 |
3250 |
0.30 |
3.60 |
34 |
3110KL-05W-B10-
L00/P00 |
24 |
10 ~ 27.6 |
0.70 |
16.7 |
2150 |
0.08 |
1.92 |
22 |
3110KL-05W-B20-
L00/P00 |
0.80 |
21.6 |
2400 |
0.09 |
2.16 |
25 |
3110KL-05W-B30-
L00/P00 |
0.90 |
26.5 |
2700 |
0.10 |
2.40 |
28 |
3110KL-05W-B40-
L00/P00 |
1.00 |
32.3 |
3000 |
0.13 |
3.12 |
31 |
3110KL-05W-B50-
L00/P00 |
1.10 |
37.2 |
3250 |
0.15 |
3.60 |
34 |
*1 : Minimum Values in Free Air, *2 : Maximum
Values in Free Air
- L00(T00) : RIB TYPE
- P00(S00) : FLANGE TYPE
Rotation : CW Viewed From Name
Plate Side
Air Flow Direction : Air Out Over the Struts
|
|
|
|
|
