| 3108NL (80¡à * 20L) |
|

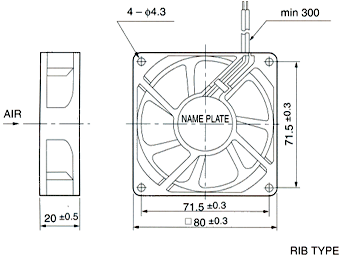

Outline
|
 |
 |
|

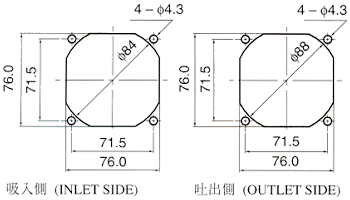

Panel Out-cuts
|
 |
|
|

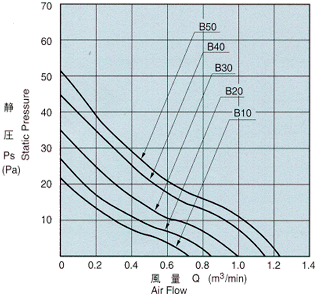

Characteristic Curves
|
 |
|
|
Material
|
| Casing |
: |
Plastic (Black) 94V_0 |
| Impeller |
: |
Plastic (Black) 94V_0 |
| Bearing |
: |
Ball Bearing |
| Lead Wire |
: |
UL1061 AWG26 +:Red, -:Black |
|
|
»ç¾çÇ¥
úþãÒÙ£
Model |
ïÒÌ«ï³äâ
Rating
Voltage |
ÞÅéÄï³äâÛôêÌ
Operating
Voltage |
õÌÓÞ
ù¦Õá
Max
Air Flow |
õÌÓÞð¡äâ
MaxStatic
Pressure |
üÞï®áÜÓø
Speed |
ïÒÌ«
ï³×¸
Current |
ïÒÌ«ìýÕô
Input
Power |
áÓëå
Noise |
òõÕá
Mass |
| V |
V |
m3/min*2 |
Pa*2 |
min-1{rpm}*2 |
A*1 |
w*1 |
dB*2 |
g |
3108NL-04W-B10-
L00/P00 |
12 |
6 ~ 13.8 |
0.75 |
21.0 |
2350 |
0.12 |
1.44 |
26.0 |
100 |
3108NL-04W-B20-
L00/P00 |
0.84 |
26.0 |
2600 |
0.14 |
1.68 |
29.0 |
3108NL-04W-B30-
L00/P00 |
0.98 |
33.5 |
2950 |
0.19 |
2.28 |
32.5 |
3108NL-04W-B40-
L00/P00 |
1.15 |
43.7 |
3350 |
0.27 |
3.24 |
38.5 |
3108NL-04W-B50-
L00/P00 |
1.25 |
50.1 |
3750 |
0.36 |
4.32 |
42.0 |
3108NL-05W-B10-
L00/P00 |
24 |
15 ~ 27.6 |
0.75 |
21.0 |
2350 |
0.07 |
1.68 |
26.0 |
3108NL-05W-B20-
L00/P00 |
0.84 |
26.0 |
2600 |
0.08 |
1.92 |
29.0 |
3108NL-05W-B30-
L00/P00 |
0.98 |
33.5 |
2950 |
0.09 |
2.16 |
32.5 |
3108NL-05W-B40-
L00/P00 |
1.15 |
43.7 |
3350 |
0.14 |
3.36 |
38.5 |
3108NL-05W-B50-
L00/P00 |
1.25 |
50.1 |
3750 |
0.19 |
4.56 |
42.0 |
*1 : Minimum Values in Free Air, *2 : Maximum
Values in Free Air
- L00(T00) : RIB TYPE
- P00(S00) : FLANGE TYPE
Rotation : CW Viewed From Name
Plate Side
Air Flow Direction : Air Out Over the Struts
|
|
|
|
|
