| 2410ML (60¡à * 25L)/Long Life Fan |

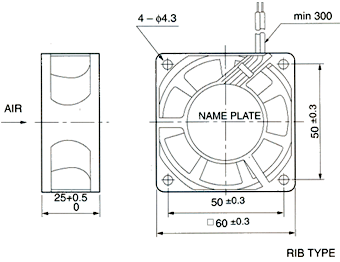

| Outline |  |
 |

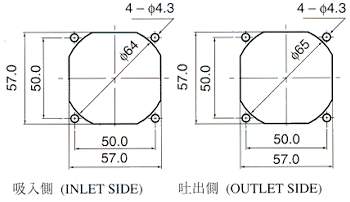

| Panel Out-cuts |  | |

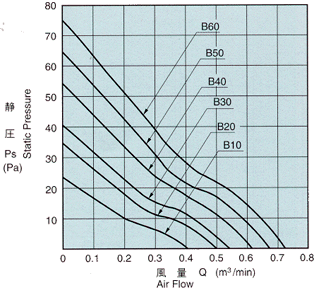

| Characteristic Curves |  |
|
| Material |
| Casing | : | Plastic (Black) 94V_0 | | Impeller | : | Plastic
(Black) 94V_0 | | Bearing | : | Ball Bearing |
| Lead Wire | : | UL1007 AWG24 +:Red, -:Black |
| |
»ç¾çÇ¥
úþãÒÙ£
Model | ïÒÌ«ï³äâ
Rating
Voltage | ÞÅéÄï³äâÛôêÌ
Operating
Voltage | õÌÓÞ
ù¦Õá
Max
Air Flow | õÌÓÞð¡äâ
MaxStatic
Pressure | üÞï®áÜÓø
Speed | ïÒÌ«
ï³×¸
Current | ïÒÌ«ìýÕô
Input
Power | áÓëå
Noise | òõÕá
Mass |
| V | V | m3/min*2 | Pa*2 | min-1{rpm}*2 | A*1 | w*1 | dB*2 | g |
2410ML-04W-B10-
L00/P00 | 12 | 6
~ 13.8 | 0.39 | 20.6 | 2950 | 0.1 | 1.2 | 23.0 | 65 |
2410ML-04W-B20-
L00/P00 | 0.48 | 31.9 | 3600 | 0.16 | 1.92 | 28.0 |
2410ML-04W-B30-
L00/P00 | 0.54 | 40.2 | 4000 | 0.16 | 1.92 | 31.0 |
2410ML-04W-B40-
L00/P00 | 0.61 | 51.9 | 4550 | 0.22 | 2.64 | 33.5 |
2410ML-05W-B10-
L00/P00 | 24 | 10
~ 27.6 | 0.39 | 20.6 | 2950 | 0.08 | 1.92 | 23.0 |
2410ML-05W-B20-
L00/P00 | 0.48 | 31.9 | 3600 | 0.09 | 2.16 | 28.0 |
2410ML-05W-B30-
L00/P00 | 0.54 | 40.2 | 4000 | 0.08 | 1.92 | 31.0 |
2410ML-05W-B40-
L00/P00 | 0.61 | 51.9 | 4550 | 0.12 | 2.88 | 33.5 |
| JTYPE | |
| 2410ML-04W-B50-J00 | 12 | 6
~ 13.8 | 0.66 | 62.2 | 4900 | 0.26 | 3.12 | 35.0 | 85 |
| 2410ML-04W-B60-J00 | 0.71 | 73.1 | 5300 | 0.4 | 4.8 | 36.0 |
| 2410ML-05W-B50-J00 | 24 | 10
~ 27.6 | 0.66 | 62.2 | 4900 | 0.13 | 3.12 | 35.0 |
| 2410ML-05W-B60-J00 | 0.71 | 73.1 | 5300 | 0.17 | 4.08 | 36.0 |
*1 : Minimum Values in Free Air, *2 : Maximum Values in Free
Air
-L00(T00) : RIB TYPE
-P00(S00) : FLANGE TYPE
-J00 : BOX TYPE Long
Life Fan
Rotation : CW Viewed From Name Plate Side
Air Flow Direction : Air Out Over the Struts |
| | | |
