| 2408NL (60¡à * 20L) |
|

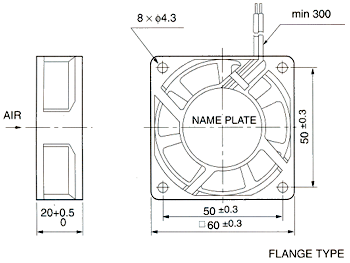

Outline
|
 |
 |
|

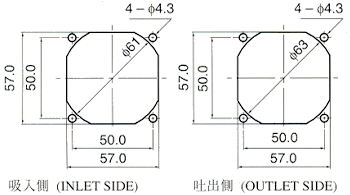

Panel Out-cuts
|
 |
|
|

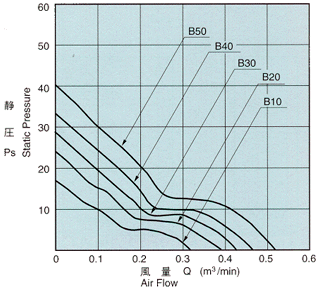

Characteristic Curves
|
 |
|
|
Material
|
| Casing |
: |
Plastic (Black) 94V_0 |
| Impeller |
: |
Plastic (Black) 94V_0 |
| Bearing |
: |
Ball Bearing |
| Lead Wire |
: |
UL1061 AWG26 +:Red, -:Black |
|
|
»ç¾çÇ¥
úþãÒÙ£
Model |
ïÒÌ«ï³äâ
Rating
Voltage |
ÞÅéÄï³äâÛôêÌ
Operating
Voltage |
õÌÓÞ
ù¦Õá
Max
Air Flow |
õÌÓÞð¡äâ
MaxStatic
Pressure |
üÞï®áÜÓø
Speed |
ïÒÌ«
ï³×¸
Current |
ïÒÌ«ìýÕô
Input
Power |
áÓëå
Noise |
òõÕá
Mass |
| V |
V |
m3/min*2 |
Pa*2 |
min-1{rpm}*2 |
A*1 |
w*1 |
dB*2 |
g |
2408NL-04W-B10-
LOO/P00 |
12 |
6 ~ 13.8 |
0.31 |
16.7 |
2800 |
0.07 |
0.84 |
22.5 |
85 |
2408NL-04W-B20-
LOO/P00 |
0.37 |
23.5 |
3200 |
0.09 |
1.08 |
25.5 |
2408NL-04W-B30-
LOO/P00 |
0.42 |
28.7 |
3600 |
0.11 |
1.32 |
27.0 |
2408NL-04W-B40-
LOO/P00 |
0.45 |
33.2 |
4000 |
0.12 |
1.44 |
29.0 |
2408NL-04W-B50-
LOO/P00 |
0.50 |
40.5 |
4400 |
0.14 |
1.68 |
31.5 |
2408NL-05W-B10-
LOO/P00 |
24 |
15 ~ 27.6 |
0.31 |
16.7 |
2800 |
0.05 |
1.20 |
22.5 |
2408NL-05W-B20-
LOO/P00 |
0.37 |
23.5 |
3200 |
0.06 |
1.44 |
25.5 |
2408NL-05W-B30-
LOO/P00 |
0.42 |
28.7 |
3600 |
0.07 |
1.68 |
27.0 |
2408NL-05W-B40-
LOO/P00 |
0.45 |
33.2 |
4000 |
0.08 |
1.92 |
29.0 |
2408NL-05W-B50-
LOO/P00 |
0.50 |
40.5 |
4400 |
0.09 |
2.16 |
31.5 |
*1 : Minimum Values in Free Air, *2 : Maximum
Values in Free Air
- L00(T00) : RIB TYPE
- P00(S00) : FLANGE TYPE
Rotation : CW Viewed From Name
Plate Side
Air Flow Direction : Air Out Over the Struts
|
|
|
|
|
