* NMB / DC FAN MOTOR Ư¡¦­»ç¾çÇ¥

2406KL (60¡à * 15L)

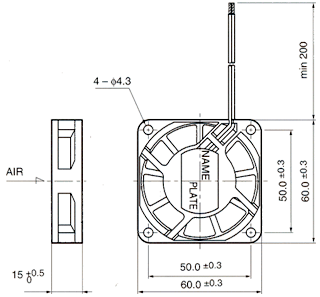

  • Outline
    		•

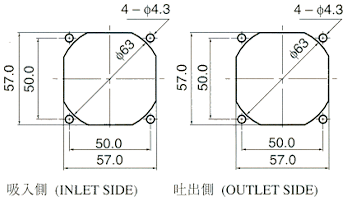

  • Panel Out-cuts
    		•

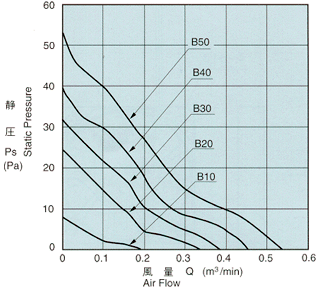

  • Characteristic Curves
    		•
  • Material
    		•
    Casing : Plastic (Black) 94V_0
    Impeller : Plastic (Black) 94V_0
    Bearing : Ball Bearing
    Lead Wire : UL1061 AWG26 +:Red, -:Black


    »ç¾çÇ¥
    úþãÒÙ£
    Model    		 ïÒÌ«ï³äâ
    Rating
    Voltage     		ÞÅéÄï³äâÛôêÌ
    Operating
    Voltage     		õÌÓÞ
    ù¦Õá
    Max
    Air Flow    		 õÌÓÞð¡äâ
    MaxStatic
    Pressure     		üÞï®áÜÓø
    Speed    		 ïÒÌ«
    ï³×¸
    Current    		 ïÒÌ«ìýÕô
    Input
    Power    		 áÓëå
    Noise    		 òõÕá
    Mass
    V V m3/min*1 Pa*1 min-1{rpm}*1 A*2 w*2 dB*1 g
    2004KL-01W-B30-L00 5 4.5 ~ 6 0.18 16 3500 0.14 0.70 23 20
    2004KL-01W-B40-L00 0.23 26 4500 0.21 1.05

    28.5
    2004KL-01W-B50-L00 0.29 35 5500 0.35 1.75 35
    2004KL-04W-B30-L00 12 10.2 ~ 13.8 0.18 16 3500 0.065 0.78 23 20
    2004KL-04W-B40-L00 0.23 26 4500 0.085 1.02 28.5
    2004KL-04W-B50-L00 0.29 35 5500 0.14 1.68 35
    *1 : Minimum Values in Free Air, *2 : Maximum Values in Free Air
    -L00 : RIB TYPE
    Rotation : CW Viewed From Name Plate Side
    Air Flow Direction : Air Out Over the Struts
