NMB / DC FAN MOTOR
Ư¡
¦
»ç¾çÇ¥
1606KL (40¡à * 15L)

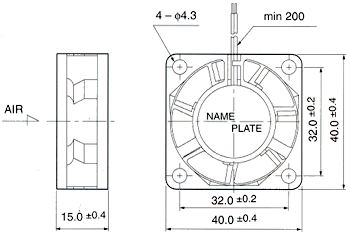

Outline

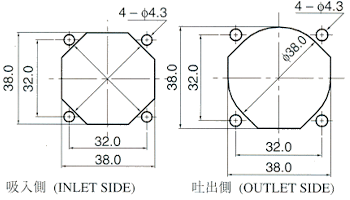

Panel Out-cuts
Characteristic Curves
Material
Casing
:
Plastic (Black) 94V_0
Impeller
:
Plastic (Black) 94V_0
Bearing
:
Ball Bearing
Lead Wire
:
UL1061 AWG26 +:Red, -:Black
»ç¾çÇ¥
úþãÒÙ£
Model
ïÒÌ«ï³äâ
Rating
Voltage
ÞÅéÄï³äâÛôêÌ
Operating
Voltage
õÌÓÞ
ù¦Õá
Max
Air Flow
õÌÓÞð¡äâ
MaxStatic
Pressure
üÞï®áÜÓø
Speed
ïÒÌ«
ï³×¸
Current
ïÒÌ«ìýÕô
Input
Power
áÓëå
Noise
òõÕá
Mass
V
V
m
3
/min
*1
Pa
*1
min
-1
{rpm}
*1
A
*2
w
*2
dB
*1
g
1606KL-04W-B30-L00
12
10.2 ~ 13.8
0.17
36.3
6000
0.09
1.08
28
20
1606KL-04W-B40-L00
0.20
47.1
7000
0.10
1.20
31
1606KL-04W-B50-L00
0.23
62.8
8000
0.11
1.32
34
1606KL-05W-B30-L00
24
22.0 ~ 25.2
0.17
36.3
6000
0.06
1.44
28
20
1606KL-05W-B40-L00
0.20
47.1
7000
0.07
1.68
31
1606KL-05W-B50-L00
0.23
62.8
8000
0.08
1.92
34
*1 : Minimum Values in Free Air, *2 : Maximum Values in Free Air
-L00 : RIB TYPE
Rotation : CW Viewed From Name Plate Side
Air Flow Direction : Air Out Over the Struts
