* NMB / DC FAN MOTOR Ư¡¦­»ç¾çÇ¥

1204KL (30¡à * 10L)

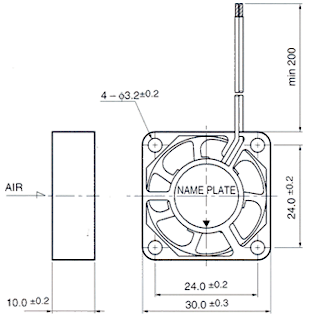

  • Outline
    		•
  • Panel Out-cuts
    		•

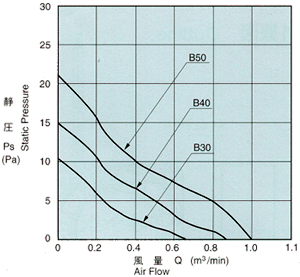

  • Characteristic Curves
    		•
  • Material
    		•
    Casing : Plastic (Black) 94V_0
    Impeller : Plastic (Black) 94V_0
    Bearing : Ball Bearing
    Lead Wire : UL1061 AWG26 +:Red, -:Black


    »ç¾çÇ¥
    úþãÒÙ£
    Model    		 ïÒÌ«ï³äâ
    Rating
    Voltage     		ÞÅéÄï³äâÛôêÌ
    Operating
    Voltage     		õÌÓÞ
    ù¦Õá
    Max
    Air Flow    		 õÌÓÞð¡äâ
    MaxStatic
    Pressure     		üÞï®áÜÓø
    Speed    		 ïÒÌ«
    ï³×¸
    Current    		 ïÒÌ«ìýÕô
    Input
    Power    		 áÓëå
    Noise    		 òõÕá
    Mass
    V V m3/min*1 Pa*1 min-1{rpm}*1 A*2 w*2 dB*1 g

    1204KL-04W-B30-L00

    		 12 6 ~ 13.8 0.065 10 6500 0.09 1.08 20 8.5
    1204KL-04W-B40-L00 0.085 15 8000 0.10 1.20 23
    1204KL-04W-B50-L00 0.1 22 9500 0.12 1.44 26
    *1 : Minimum Values in Free Air, *2 : Maximum Values in Free Air
    -L00 : RIB TYPE
    Rotation : CW Viewed From Name Plate Side
    Air Flow Direction : Air Out Over the Struts
