* NMB / AC FAN MOTOR Ư¡¦­»ç¾çÇ¥

5915PC (150¡à * 172 * 38L)

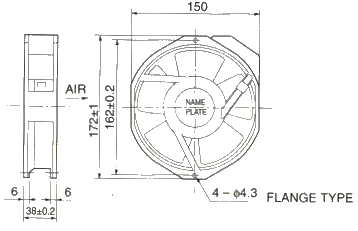

  • Outline
    		•
  • Panel Out-cuts
    		•
  • Characteristic Curves
    		•
  • Material
    		•
    1. Structure : Capacitor-Run Pole Induction Motor
    2. Material
      Casing : Aluminum Die Casting
      Impeller : Polycarbonate (Glass Fiber-Containing)
      Bearing : Ball Bearings
      Terminal : Faston #110 Equiv
    3.

    		 Protection

    		 : Thermally Protected (Standard Speed)
    Impedance Protected (Half/Low Speed)


    »ç¾çÇ¥
    B30úþ
    úþãÒÙ£
    Model    		 ïÒÌ«
    ï³äâ
    Rating
    Voltage     		ñ²÷îâ¦
    Frequency    		 ÑÃÔÑ
    ï³äâ
    Starting
    Voltage     		õÌÓÞ
    ù¦Õá
    Max
    Air Flow    		 õÌÓÞð¡äâ
    MaxStatic
    Pressure     		üÞï®áÜÓø
    Speed    		 ïÒÌ«
    ï³×¸
    Current    		 ïÒÌ«
    ìýÕô
    Input
    Power    		 áÓëå
    Noise    		 òõÕá
    Mass
    V Hz V A*2 dB g

    5915PC-10T-B30-B00

    		 100 50 65 5.0 156.8{16} 2700 0.47 37.0 52 800
    60 6.0 215.6{22} 3200 0.44 33.0 56

    5915PC-12T-B30-A00

    		 115 50 75 5.0 156.8{16} 2700 0.38 35.0 52
    60 6.0 215.6{22} 3200 0.36 32.0 56

    5915PC-20T-B30-B00

    		 200 50 130 5.0 156.8{16} 2700 0.23 34.0 52
    60 6.0 215.6{22} 3200 0.21 33.0 56

    5915PC-22T-B30-B00

    		 220 50 145 5.0 156.8{16} 2700 0.21 40.0 52
    60 6.0 215.6{22} 3200 0.18 38.0 56

    5915PC-23T-B30-A00

    		 230 50 145 5.0 156.8{16} 2700 0.19 35.0 52
    60 6.0 215.6{22} 3200 0.18 35.0 56

    5915PC-24T-B30-A00

    		 240 50 155 5.0 156.8{16} 2700 0.18 34.0 52
    60 6.0 215.6{22} 3200 0.17 34.0 56
    B20úþ
    úþãÒÙ£
    Model    		 ïÒÌ«
    ï³äâ
    Rating
    Voltage     		ñ²÷îâ¦
    Frequency    		 ÑÃÔÑ
    ï³äâ
    Starting
    Voltage     		õÌÓÞ
    ù¦Õá
    Max
    Air Flow    		 õÌÓÞð¡äâ
    MaxStatic
    Pressure     		üÞï®áÜÓø
    Speed    		 ïÒÌ«
    ï³×¸
    Current    		 ïÒÌ«
    ìýÕô
    Input
    Power    		 áÓëå
    Noise    		 òõÕá
    Mass
    V Hz V A*2 dB g

    5915PC-10T-B20-B00

    		 100 50 65 4.0 98.0{10} 2200 0.25 22 46 800
    60 4.7 117.6{12} 2600 0.23 23 50
    5915PC-12T-B20-A00 115 50 75 4.0 98.0{10} 2200 0.20 21 46
    60 4.7 117.6{12} 2600 0.21 22 50
    5915PC-20T-B20-B00 200 50 130 4.0 98.0{10} 2200 0.12 22 46
    60 4.7 117.6{12} 2600 0.14 23 50
    5915PC-22T-B20-B00 220 50 145 4.0 98.0{10} 2200 0.11 23 46
    60 4.7 117.6{12} 2600 0.13 26 50
    5915PC-23T-B20-A00 230 50 145 4.0 98.0{10} 2200 0.12 23 46
    60 4.7 117.6{12} 2600 0.14 26 50
    5915PC-24T-B20-A00 240 50 145 4.0 98.0{10} 2200 0.10 22 46
    60 4.7 117.6{12} 2600 0.11 26 50
    B10úþ
    úþãÒÙ£
    Model    		 ïÒÌ«
    ï³äâ
    Rating
    Voltage     		ñ²÷îâ¦
    Frequency    		 ÑÃÔÑ
    ï³äâ
    Starting
    Voltage     		õÌÓÞ
    ù¦Õá
    Max
    Air Flow    		 õÌÓÞð¡äâ
    MaxStatic
    Pressure     		üÞï®áÜÓø
    Speed    		 ïÒÌ«
    ï³×¸
    Current    		 ïÒÌ«
    ìýÕô
    Input
    Power    		 áÓëå
    Noise    		 òõÕá
    Mass
    V Hz V A*2 dB g

    5915PC-10T-B10-B00

    		 100 50 65 2.4 43.1{4.4} 1400 0.17 16 35 800
    60 2.9 60.7{6.2} 1650 0.20 18 38
    5915PC-12T-B10-A00 115 50 75 2.4 43.1{4.4} 1400 0.16 16 35
    60 2.9 60.7{6.2} 1650 0.19 18 38
    5915PC-20T-B10-B00 200 50 130 2.4 42.1{4.3} 1400

    0.11

    		 16 35
    60 2.9 60.7{6.2} 1650 0.13 18 38
    5915PC-22T-B10-B00 220 50 130 2.4 42.1{4.3} 1400 0.10 16 35
    60 2.9 60.7{6.2} 1650 0.12 18 38
    5915PC-23T-B10-A00 230 50 145 2.4 42.1{4.3} 1400 0.09 16 35
    60 2.9 60.7{6.2} 1650 0.11 18 38
    5915PC-24T-B10-A00 240 50 145 2.4 42.1{4.3} 1400 0.09 16 35
    60 2.9 60.7{6.2} 1650 0.11 18 38
    *1 : Minimum Values in Free Air, *2 : Maximum Values in Free Air
