* NMB / AC FAN MOTOR Ư¡¦­»ç¾çÇ¥

4715MS (119¡à * 38L)

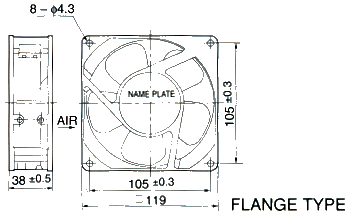

  • Outline
    		•

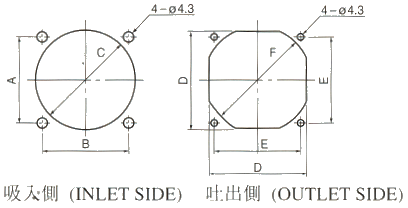

  • Panel Out-cuts
    		•
  • Characteristic Curves
    		•


  • Material
    		•
    1. Structure : Shaded Pole Induction Motor
    2. Material
      Casing : Aluminum Die Casting
      Impeller : Polycarbonate (Glass Fiber-Containing)
      Bearing : Ball Bearings
      Terminal : Faston #110 Equiv
    3. Protection : Impedance Protected


    »ç¾çÇ¥
    B50úþ
    úþãÒÙ£
    Model    		 ïÒÌ«
    ï³äâ
    Rating
    Voltage     		ñ²÷îâ¦
    Frequency    		 ÑÃÔÑ
    ï³äâ
    Starting
    Voltage     		õÌÓÞ
    ù¦Õá
    Max
    Air Flow    		 õÌÓÞð¡äâ
    MaxStatic
    Pressure     		üÞï®áÜÓø
    Speed    		 ïÒÌ«
    ï³×¸
    Current    		 ïÒÌ«
    ìýÕô
    Input
    Power    		 áÓëå
    Noise    		 òõÕá
    Mass
    V Hz V A*2 dB g

    4715MS-10T-B50-B00

    		 100 50 65 2.5 64.6{6.6} 2600 0.27 15 37 550
    60 2.9 76.4{7.8} 2900 0.23 14 41
    4715MS-12T-B50-A00 115 50 65 2.5 64.6{6.6} 2600 0.25 15.5 37
    60 2.9 76.4{7.8} 2900 0.21 14.5 41
    4715MS-20T-B50-B00 200 50 130 2.5 64.6{6.6} 2600 0.14 15 37
    60 2.9 76.4{7.8} 2900 0.12 13 41
    4715MS-22T-B50-B00 220 50 145 2.5 63.7{6.5} 2600 0.12 14 37
    60 2.9 75.4{7.7} 2900 0.10 13 41
    4715MS-23T-B50-A00 230 50 175 2.5 63.7{6.5} 2600 0.12 15 37
    60 2.9 70.5{7.2} 2900 0.10 14 41
    4715MS-24T-B50-A00 240 50 140 2.5 63.7{6.5} 2600 0.11 14 37
    60 2.9 65.6{6.7} 2900 0.10 13 41
    B40úþ
    úþãÒÙ£
    Model    		 ïÒÌ«
    ï³äâ
    Rating
    Voltage     		ñ²÷îâ¦
    Frequency    		 ÑÃÔÑ
    ï³äâ
    Starting
    Voltage     		õÌÓÞ
    ù¦Õá
    Max
    Air Flow    		 õÌÓÞð¡äâ
    MaxStatic
    Pressure     		üÞï®áÜÓø
    Speed    		 ïÒÌ«
    ï³×¸
    Current    		 ïÒÌ«
    ìýÕô
    Input
    Power    		 áÓëå
    Noise    		 òõÕá
    Mass
    V Hz V A*2 dB g

    4715MS-10T-B40-B00

    		 100 50 65 2.4 50.9{5.2} 2450 0.25 15 35 550
    60 2.7 62.7{6.4} 2750 0.22 13 39
    4715MS-12T-B40-A00 115 50 75 2.4 50.9{5.3} 2450 0.22 15 35
    60 2.7 64.6{6.6} 2750 0.19 13 39
    4715MS-20T-B40-B00 200 50 130 2.4 50.9{5.3} 2450 0.13 15 35
    60 2.7 63.7{6.5} 2750 0.11 13 39
    4715MS-22T-B40-B00 220 50 145 2.4 53.9{5.5} 2450 0.11 14 35
    60 2.7 63.7{6.5} 2750 0.10 12 39
    4715MS-23T-B40-A00 230 50 175 2.4 53.9{5.5} 2450 0.12 15 35
    60 2.7 63.7{6.5} 2750 0.10 13 39
    4715MS-24T-B40-A00 240 50 140 2.4 50.9{5.3} 2450 0.10 13 35
    60 2.7 58.8{6.0} 2750 0.08 12 39
    B30úþ
    úþãÒÙ£
    Model    		 ïÒÌ«
    ï³äâ
    Rating
    Voltage     		ñ²÷îâ¦
    Frequency    		 ÑÃÔÑ
    ï³äâ
    Starting
    Voltage     		õÌÓÞ
    ù¦Õá
    Max
    Air Flow    		 õÌÓÞð¡äâ
    MaxStatic
    Pressure     		üÞï®áÜÓø
    Speed    		 ïÒÌ«
    ï³×¸
    Current    		 ïÒÌ«
    ìýÕô
    Input
    Power    		 áÓëå
    Noise    		 òõÕá
    Mass
    V Hz V A*2 dB g

    4715MS-10T-B30-B00

    		 100 50 65 2.3 49.9{5.1} 2400 0.19 11 34 550
    60 2.5 50.9{5.2} 2600 0.17 10 37
    4715MS-12T-B30-A00 115 50 75 2.3 49.9{5.1} 2400 0.16 11 34
    60 2.5 49.9{5.1} 2600 0.14 10 37
    4715MS-20T-B30-B00 200 50 130 2.3 48.0{4.9} 2400 0.09 10 34
    60 2.5 46.0{4.7} 2600 0.08 10 37
    4715MS-22T-B30-B00 220 50 145 2.3 49.9{5.1} 2400 0.09 11 34
    60 2.5 47.0{4.8} 2600 0.08 10 37
    4715MS-23T-B30-A00 230 50 175 2.3 49.9{5.1} 2400 0.10 12 34
    60 2.5 51.9{5.3} 2600 0.08 11 37
    4715MS-24T-B30-A00 240 50 140 2.3 49.9{5.1} 2400 0.09 12 34
    60 2.5 50.9{5.2} 2600 0.08 11 37
    B20úþ
    úþãÒÙ£
    Model    		 ïÒÌ«
    ï³äâ
    Rating
    Voltage     		ñ²÷îâ¦
    Frequency    		 ÑÃÔÑ
    ï³äâ
    Starting
    Voltage     		õÌÓÞ
    ù¦Õá
    Max
    Air Flow    		 õÌÓÞð¡äâ
    MaxStatic
    Pressure     		üÞï®áÜÓø
    Speed    		 ïÒÌ«
    ï³×¸
    Current    		 ïÒÌ«
    ìýÕô
    Input
    Power    		 áÓëå
    Noise    		 òõÕá
    Mass
    V Hz V A*2 dB g

    4715MS-10T-B20-B00

    		 100 50 65 2.0 35.2{3.6} 2100 0.13 8 32 550
    60 1.9 24.5{2.5} 1950 0.12 8 30
    4715MS-12T-B20-A00 115 50 75 2.0 35.2{3.6} 2100 0.10 7 32
    60 1.9 24.5{2.5} 1950 0.10 7 30
    4715MS-20T-B20-B00 200 50 130 2.0 32.3{3.3} 2100 0.10 7 32
    60 1.9 20.5{2.1} 1950 0.06 7 30
    4715MS-22T-B20-B00 220 50 145 2.0 31.3{3.2} 2100 0.06 7 32
    60 1.9 19.6{2.0} 1900 0.06 7 30
    4715MS-23T-B20-A00 230 50 175 2.0 35.2{3.6} 2100 0.06 7.5 32
    60 1.9 21.5{2.2} 1900 0.06 7.5 30
    4715MS-24T-B20-A00 240 50 175 2.0 38.2{3.9} 2100 0.06 8 32
    60 1.9 24.5{2.5} 1900 0.06 8 30
    B10úþ
    úþãÒÙ£
    Model    		 ïÒÌ«
    ï³äâ
    Rating
    Voltage     		ñ²÷îâ¦
    Frequency    		 ÑÃÔÑ
    ï³äâ
    Starting
    Voltage     		õÌÓÞ
    ù¦Õá
    Max
    Air Flow    		 õÌÓÞð¡äâ
    MaxStatic
    Pressure     		üÞï®áÜÓø
    Speed    		 ïÒÌ«
    ï³×¸
    Current    		 ïÒÌ«
    ìýÕô
    Input
    Power    		 áÓëå
    Noise    		 òõÕá
    Mass
    V Hz V A*2 dB g

    4715MS-10T-B10-B00

    		 100 50 65 1.3 16.6{1.7} 1350 0.11 7 27 550
    60 1.4 16.6{1.7} 1450 0.10 6.5 28
    4715MS-12T-B10-A00 115 50 75 1.3 15.6{1.6} 1350 0.09 6 27
    60 1.4 16.6{1.7} 1450 0.08 5.5 28
    4715MS-20T-B10-B00 200 50 130 1.3 14.7{1.5} 1350 0.055 6 27
    60 1.4 14.7{1.5} 1450 0.05 5.5 28
    4715MS-22T-B10-B00 220 50 145 1.3 14.7{1.5} 1350 0.05 6 27
    60 1.4 14.7{1.5} 1450 0.04 5.5 28
    4715MS-23T-B10-A00 230 50 175 1.3 14.7{1.5} 1350 0.5 6.5 27
    60 1.4 14.7{1.5} 1450 0.045 6 28
    4715MS-24T-B10-A00 240 50 175 1.3 15.6{1.6} 1350 0.05 6.5 27
    60 1.4 16.6{1.7} 1450 0.045 6 28
    *1 : Minimum Values in Free Air, *2 : Maximum Values in Free Air
