* NMB / AC FAN MOTOR Ư¡¦­»ç¾çÇ¥

4710PS (119¡à * 25L)

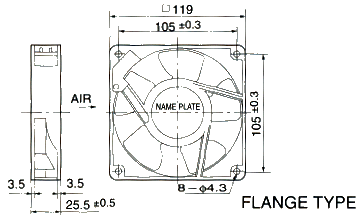

  • Outline
    		•

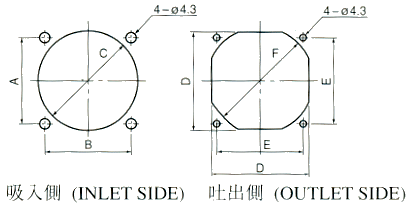

  • Panel Out-cuts
    		•
  • Characteristic Curves
    		•
  • Material
    		•
    1. Structure : Shaded Pole Induction Motor
    2. Material
      Casing : Aluminum Die Casting
      Impeller : Polycarbonate (Glass Fiber-Containing)
      Bearing : Ball Bearings
      Terminal : Faston #110 Equiv
    3. Protection : Impedance Protected


    »ç¾çÇ¥
    B30úþ Standard Type
    úþãÒÙ£
    Model    		 ïÒÌ«
    ï³äâ
    Rating
    Voltage     		ñ²÷îâ¦
    Frequency    		 ÑÃÔÑ
    ï³äâ
    Starting
    Voltage     		õÌÓÞ
    ù¦Õá
    Max
    Air Flow    		 õÌÓÞð¡äâ
    MaxStatic
    Pressure     		üÞï®áÜÓø
    Speed    		 ïÒÌ«
    ï³×¸
    Current    		 ïÒÌ«
    ìýÕô
    Input
    Power    		 áÓëå
    Noise    		 òõÕá
    Mass
    V Hz V A*2 dB g

    4710PS-10T-B30-B00

    		 100 50 65 1.8 41.1{4.2} 2300 0.22 14.0 34 360
    60 2.0 41.1{4.2} 2700 0.18 11.0 38
    4710PS-12T-B30-A00 115 50 75 1.8 41.1{4.2} 2300 0.19 14.0 34
    60 2.0 41.1{4.2} 2700 0.16 11.0 38
    4710PS-20T-B30-B00 200 50 130 1.8 41.1{4.2} 2300 0.11 14.0 34
    60 2.0 41.1{4.2} 2700 0.09 11.0 38
    4710PS-22T-B30-B00 220 50 175 1.8 41.1{4.2} 2300 0.10 14.0 34
    60 2.0 41.1{4.2} 2700 0.08 11.0 38
    4710PS-23T-B30-A00 230 50 175 1.8 41.1{4.2} 2300 0.10 14.0 34
    60 2.0 41.1{4.2} 2700 0.09 11.0 38
    4710PS-24T-B30-A00 240 50 130 1.7 41.1{4.2} 2300 0.10 15.0 34
    60 2.0 41.1{4.2} 2700 0.08 13.0 38
    B20úþ Half Type
    úþãÒÙ£
    Model    		 ïÒÌ«
    ï³äâ
    Rating
    Voltage     		ñ²÷îâ¦
    Frequency    		 ÑÃÔÑ
    ï³äâ
    Starting
    Voltage     		õÌÓÞ
    ù¦Õá
    Max
    Air Flow    		 õÌÓÞð¡äâ
    MaxStatic
    Pressure     		üÞï®áÜÓø
    Speed    		 ïÒÌ«
    ï³×¸
    Current    		 ïÒÌ«
    ìýÕô
    Input
    Power    		 áÓëå
    Noise    		 òõÕá
    Mass
    V Hz V A*2 dB g

    4710PS-10T-B20-B00

    		 100 50 65 1.4 19.6{2.0} 1900 0.12 8 29 360
    60 1.5 21.5{2.2} 2100 0.10 7 30
    4710PS-12T-B20-A00 115 50 75 1.4 23.5{2.4} 1900 0.10 8 29
    60 1.5 21.5{2.2} 2000 0.09 7 30
    4710PS-20T-B20-B00 200 50 130 1.3 19.6{2.0} 1900 0.07 9 29
    60 1.5 21.5{2.2} 2000 0.06 8 30
    4710PS-22T-B20-B00 220 50 175 1.4 19.6{2.0} 1900 0.06 9 29
    60 1.5 21.5{2.2} 2100 0.05 8 30
    4710PS-23T-B20-A00 230 50 175 1.4 23.5{2.4} 1900 0.06 9 29
    60 1.5 21.5{2.2} 2100 0.05 9 30
    4710PS-24T-B20-A00 240 50 140 1.4 19.6{2.0} 1900 0.06 9 29
    60 1.5 21.5{2.2} 2000 0.05 8 30
    *1 : Minimum Values in Free Air, *2 : Maximum Values in Free Air
