* NMB / AC FAN MOTOR Ư¡¦­»ç¾çÇ¥

3610PS (92¡à * 25L)

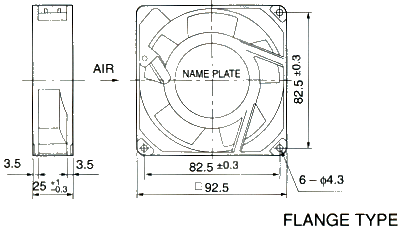

  • Outline
    		•

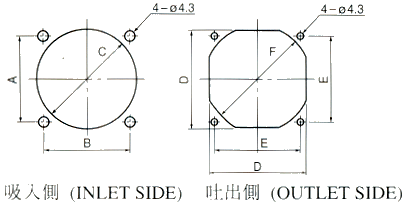

  • Panel Out-cuts
    		•

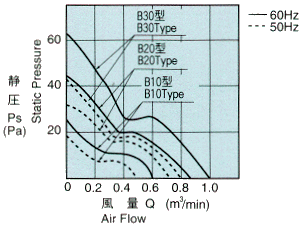

  • Characteristic Curves
    		•
  • Material
    		•
    1. Structure : Shaded Pole Induction Motor
    2. Material
      Casing : Aluminum Die Casting
      Impeller : Polycarbonate (Glass Fiber-Containing)
      Bearing : Ball Bearings
      Terminal : Faston #110 Equiv
    3. Protection : Impedance Protected


    »ç¾çÇ¥
    B30úþ Standard Type
    úþãÒÙ£
    Model    		 ïÒÌ«
    ï³äâ
    Rating
    Voltage     		ñ²÷îâ¦
    Frequency    		 ÑÃÔÑ
    ï³äâ
    Starting
    Voltage     		õÌÓÞ
    ù¦Õá
    Max
    Air Flow    		 õÌÓÞð¡äâ
    MaxStatic
    Pressure     		üÞï®áÜÓø
    Speed    		 ïÒÌ«
    ï³×¸
    Current    		 ïÒÌ«
    ìýÕô
    Input
    Power    		 áÓëå
    Noise    		 òõÕá
    Mass
    V Hz V A*2 dB g

    3610PS-10T-B30-B00

    		 100 50 65 0.80 43.1{4.4} 2600 0.190 13.0 33.5 300
    60 0.98 60.7{6.2} 3100 0.150 10.0 38.0
    3610PS-12T-B30-A00 115 50 75 0.80 43.1{4.4} 2600 0.170 12.0 33.5
    60 0.98 60.7{6.2} 3100 0.130 9.0 38.0
    3610PS-20T-B30-B00 200 50 130 0.80 43.1{4.4} 2600 0.100 13.0 33.5
    60 0.98 60.7{6.2} 3100 0.080 10.0 38.0
    3610PS-22T-B30-B00 220 50 165 0.80 43.1{4.4} 2600 0.100 13.0 34.0
    60 0.98 60.7{6.2} 3100 0.080 10.0 39.0
    3610PS-23T-B30-A00 230 50 180 0.80 43.1{4.4} 2600 0.090 13.0 34.0
    60 0.98 60.7{6.2} 3100

    0.070

    		 10.0 39.0
    3610PS-24T-B30-A00 240 50 180 0.80 43.1{4.4} 2600 0.085 13.0 34.0
    60 0.98 60.7{6.2} 3100 0.065 10.0 39.0
    B20úþ Half Type
    úþãÒÙ£
    Model    		 ïÒÌ«
    ï³äâ
    Rating
    Voltage     		ñ²÷îâ¦
    Frequency    		 ÑÃÔÑ
    ï³äâ
    Starting
    Voltage     		õÌÓÞ
    ù¦Õá
    Max
    Air Flow    		 õÌÓÞð¡äâ
    MaxStatic
    Pressure     		üÞï®áÜÓø
    Speed    		 ïÒÌ«
    ï³×¸
    Current    		 ïÒÌ«
    ìýÕô
    Input
    Power    		 áÓëå
    Noise    		 òõÕá
    Mass
    V Hz V A*2 dB g

    3610PS-10T-B20-B00

    		 100 50 65 0.60 27.4{2.8} 2100 0.095 7.0 30.0 300
    60 0.80 39.2{4.0} 2500 0.085 6.0 35.0
    3610PS-12T-B20-A00 115 50 75 0.60 29.4{3.0} 2100 0.095 7.0 30.0
    60 0.80 39.2{4.0} 2500 0.090 6.0 35.0
    3610PS-20T-B20-B00 200 50 130 0.65 27.4{2.8} 2100 0.060 7.0 30.0
    60 0.80 39.2{4.0} 2500 0.050 6.0 35.0
    3610PS-22T-B20-B00 220 50 165 0.60 29.4{3.0} 2100 0.050 6.5 30.0
    60 0.80 38.2{3.9} 2500 0.050 5.5 35.0
    3610PS-23T-B20-A00 230 50 180 0.60 29.4{3.0} 2100 0.050 7.0 30.0
    60 0.80 39.2{4.0} 2500 0.050 6.0 35.0
    3610PS-24T-B20-A00 240 50 180 0.60 29.4{3.0} 2100 0.050 9.0 30.0
    60 0.80 39.2{4.0} 2500 0.050 8.0 35.0
    B10úþ Low Type
    úþãÒÙ£
    Model    		 ïÒÌ«
    ï³äâ
    Rating
    Voltage     		ñ²÷îâ¦
    Frequency    		 ÑÃÔÑ
    ï³äâ
    Starting
    Voltage     		õÌÓÞ
    ù¦Õá
    Max
    Air Flow    		 õÌÓÞð¡äâ
    MaxStatic
    Pressure     		üÞï®áÜÓø
    Speed    		 ïÒÌ«
    ï³×¸
    Current    		 ïÒÌ«
    ìýÕô
    Input
    Power    		 áÓëå
    Noise    		 òõÕá
    Mass
    V Hz V A*2 dB g

    3610PS-10T-B10-B00

    		 100 50 65 0.46 13.7{1.4} 1450 0.100 7 23 300
    60 0.58 19.6{2.0} 1800 0.090 6 26
    3610PS-12T-B10-A00 115 50 75 0.46 13.7{1.4} 1450 0.090 7 22
    60 0.58 19.6{2.0} 1800 0.080 6 25
    3610PS-20T-B10-B00 200 50 130 0.46 13.7{1.4} 1500 0.045 7 24
    60 0.60 19.6{2.0} 1900 0.040 6 27
    3610PS-22T-B10-B00 220 50 165 0.46 13.7{1.4} 1450 0.050 8 23
    60 0.60 19.6{2.0} 1800 0.040 7 26
    3610PS-23T-B10-A00 230 50 180 0.46 13.7{1.4} 1450 0.050 7 22
    60 0.58 19.6{2.0} 1800 0.040 6 26
    3610PS-24T-B10-A00 240 50 180 0.46 13.7{1.4} 1450 0.050 8 24
    60 0.60 19.6{2.0} 1800 0.045 7 27
    *1 : Minimum Values in Free Air, *2 : Maximum Values in Free Air
