| 2412PS (60¡à * 30L) |
|

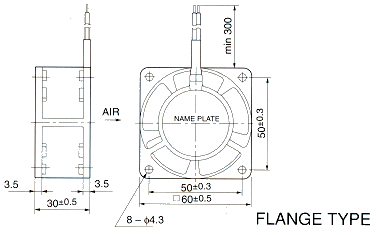

Outline
|
 |
 |
|

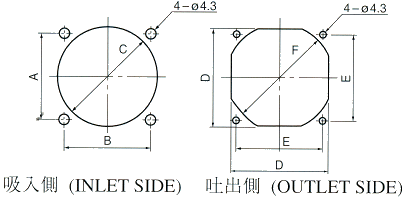

Panel Out-cuts
|
 |
|
|
Characteristic Curves
|
 |
|
|
Material
|
| 1. |
Structure |
: |
Shaded Pole Induction Motor |
| 2. |
Material |
|
|
| |
Casing |
: |
Aluminum Die Casting |
| |
Impeller |
: |
Polycarbonate (Glass Fiber-Containing) |
| |
Bearing |
: |
Ball Bearings |
| |
Lead Wire |
: |
UL3266, CSA CL 1252, AGW22 |
| 3. |
Protection |
: |
Impedance Protected |
|
|
»ç¾çÇ¥
| *1 : Minimum Values in Free Air, *2 : Maximum
Values in Free Air |
|
|
|
|
